LS Swap Progress: Fuel Tank & Diff Mounts

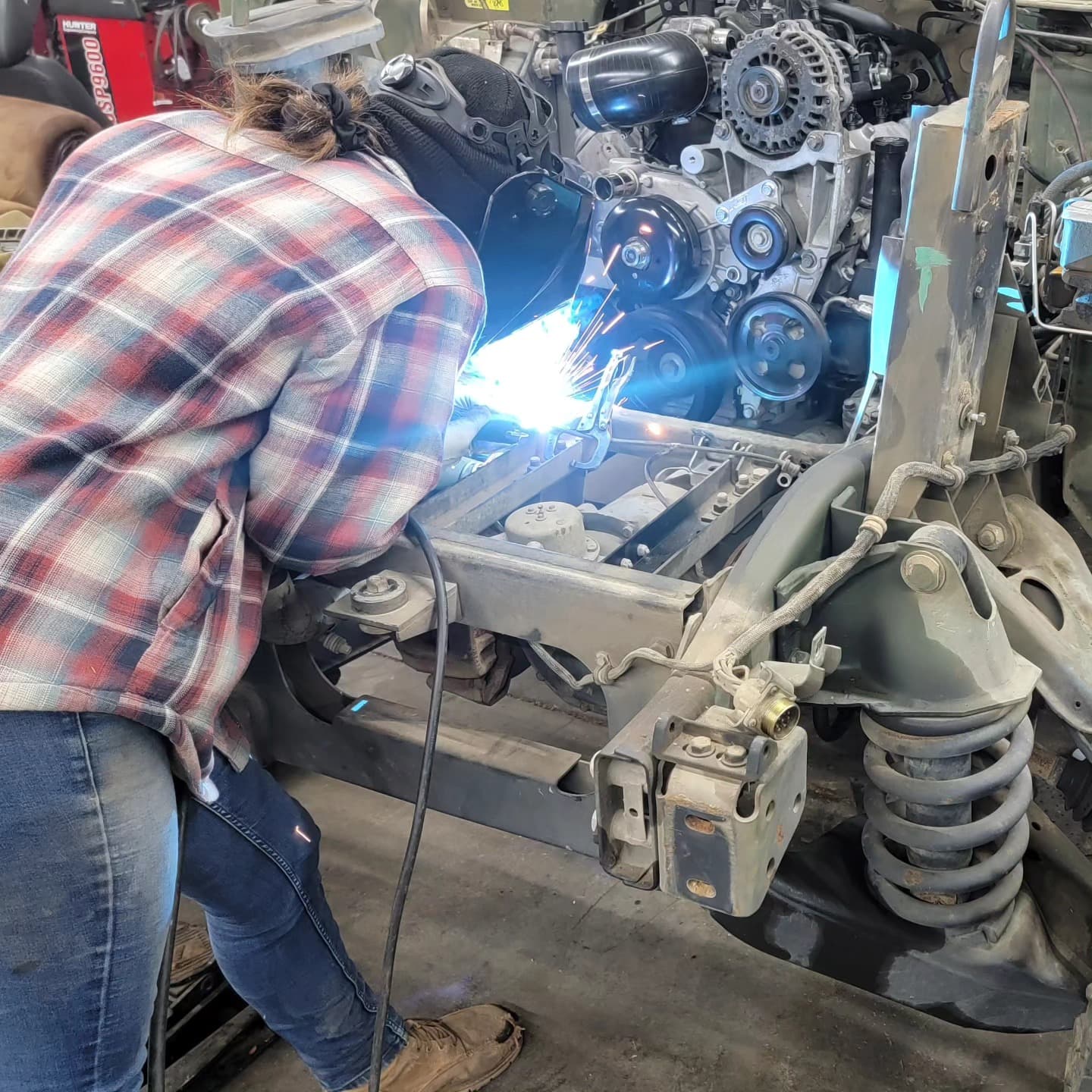

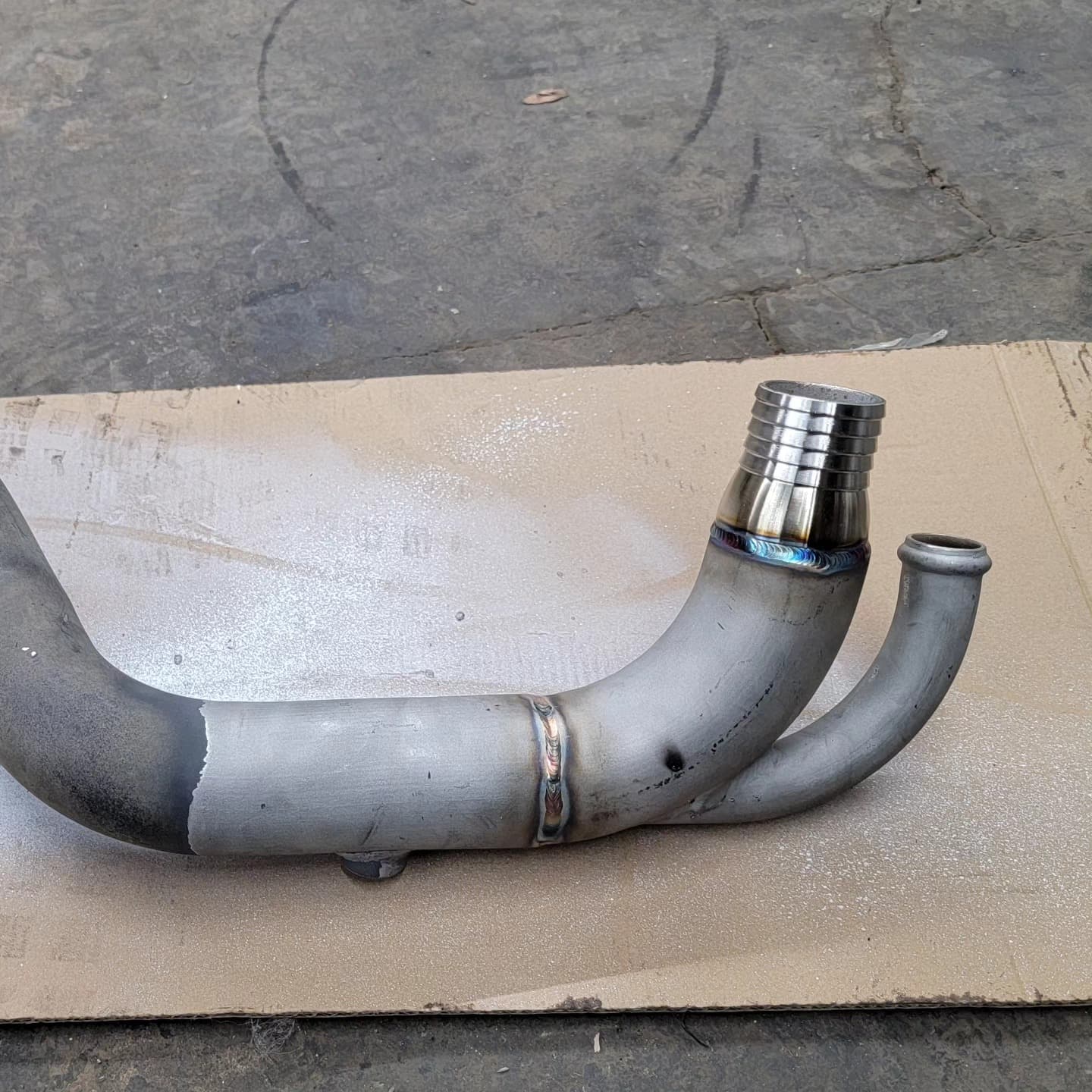

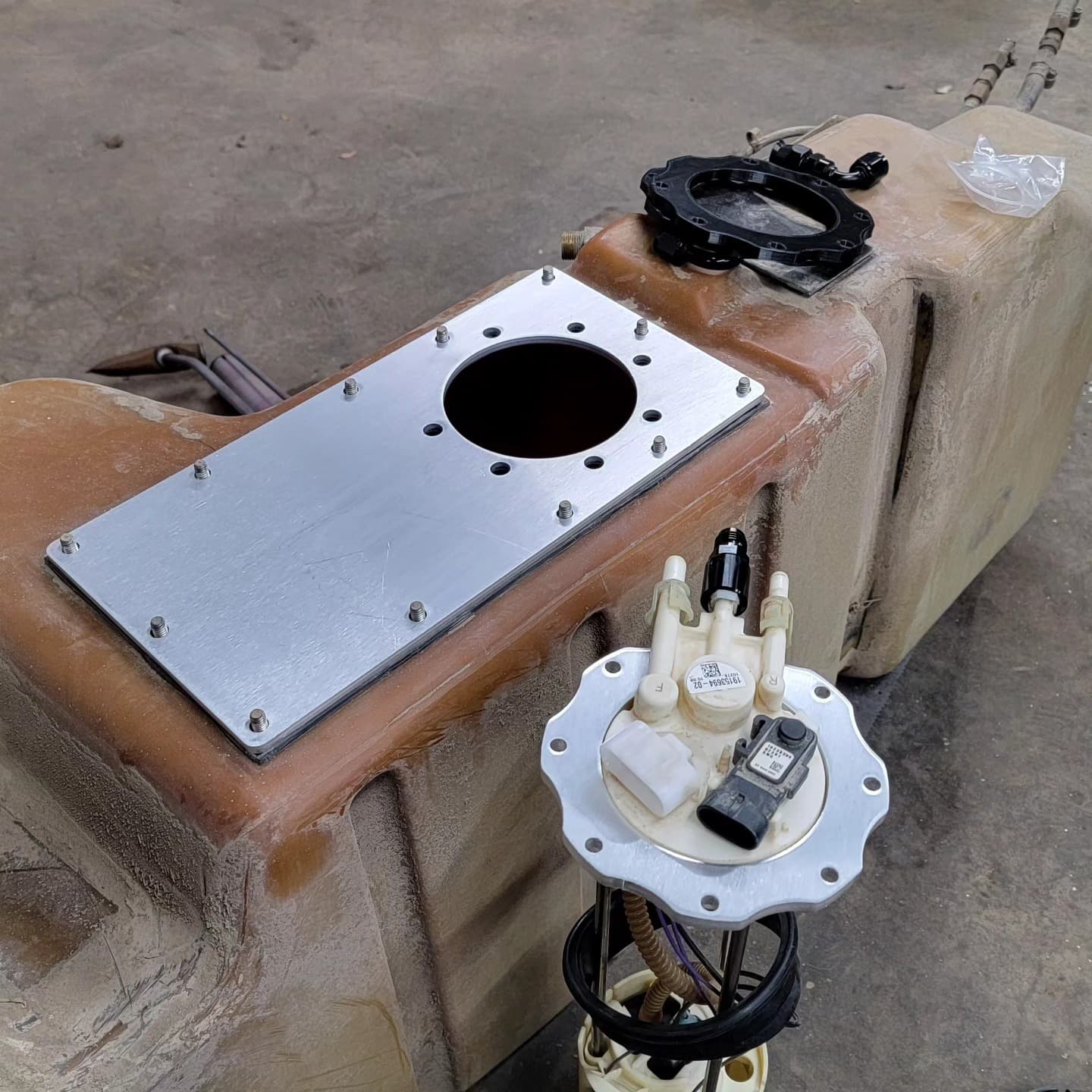

I haven't updated in a while on the budget LS swap since we've been working on our house, but here are a few small updates! I finished the design for the fuel tank plate to mount a stock GM fuel pump assembly and had it cut out. I just need to install the threaded inserts. I also cut down the lower radiator hose pipe and modified a 1.5" NPT to 1.5" barbed stainless fitting to work for the LS water pump, and my wife TIG welded it together. We also made four copies of the small differential frame brackets and welded them on 2.5" over to centre the front diff so I can try running four equal length CV halfshafts.
